SC100 Ex-Proof Solenoid Valve
1. Features
- Rugged aluminum die-cast housing- Convertible from 5/2 way to 3/2 way
- Rotatable valve head for optimal mounting
- Direct NAMUR mounting or screw mounting
2.Specifications
| Operating Air Pressure | 1.5 – 10 kgf/㎠ |
| Air Supply (Max.) | 15 kgf/㎠ |
| Operating Voltage : Current | AC 110V : 55 mA |
| AC 220V : 17 mA | |
| DC 24V : 138 mA | |
| Voltage Tolerance | ±10% |
| Frequency | 50Hz / 60Hz |
| Explosion Proof Class | Exd IIC T6(H2) |
| Operating Ambient Temperature | -20℃ ~ + 70℃ |
| Flow Capacity (Cv) | 0.9 |
| Mounting Configuration | NAMUR or screw interface |
| Pneumatic Connections | NPT 1/4 |
| Electrical Connection | NPT 1/2 |
| Coil Insulation Grade | Class H |
| Duty Cycle | 100% |
| Weight | 0.9kg |
3.Installation

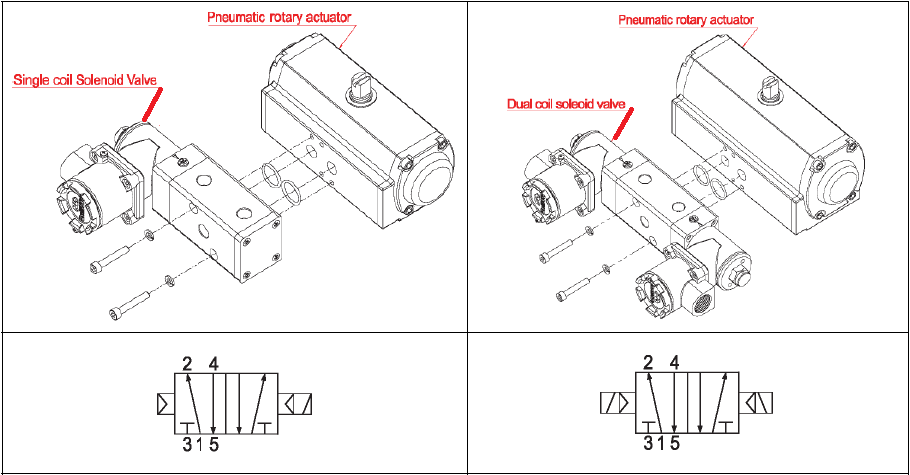

As the HID solenoid valve is designed for NAMUR mounting pattern, it can be mounted directly onto the pneumatic actuator without an additional piping. Also, as it has PT 1/4 or NPT 1/4 threads inside of the connections as standard, the screw interface is available.

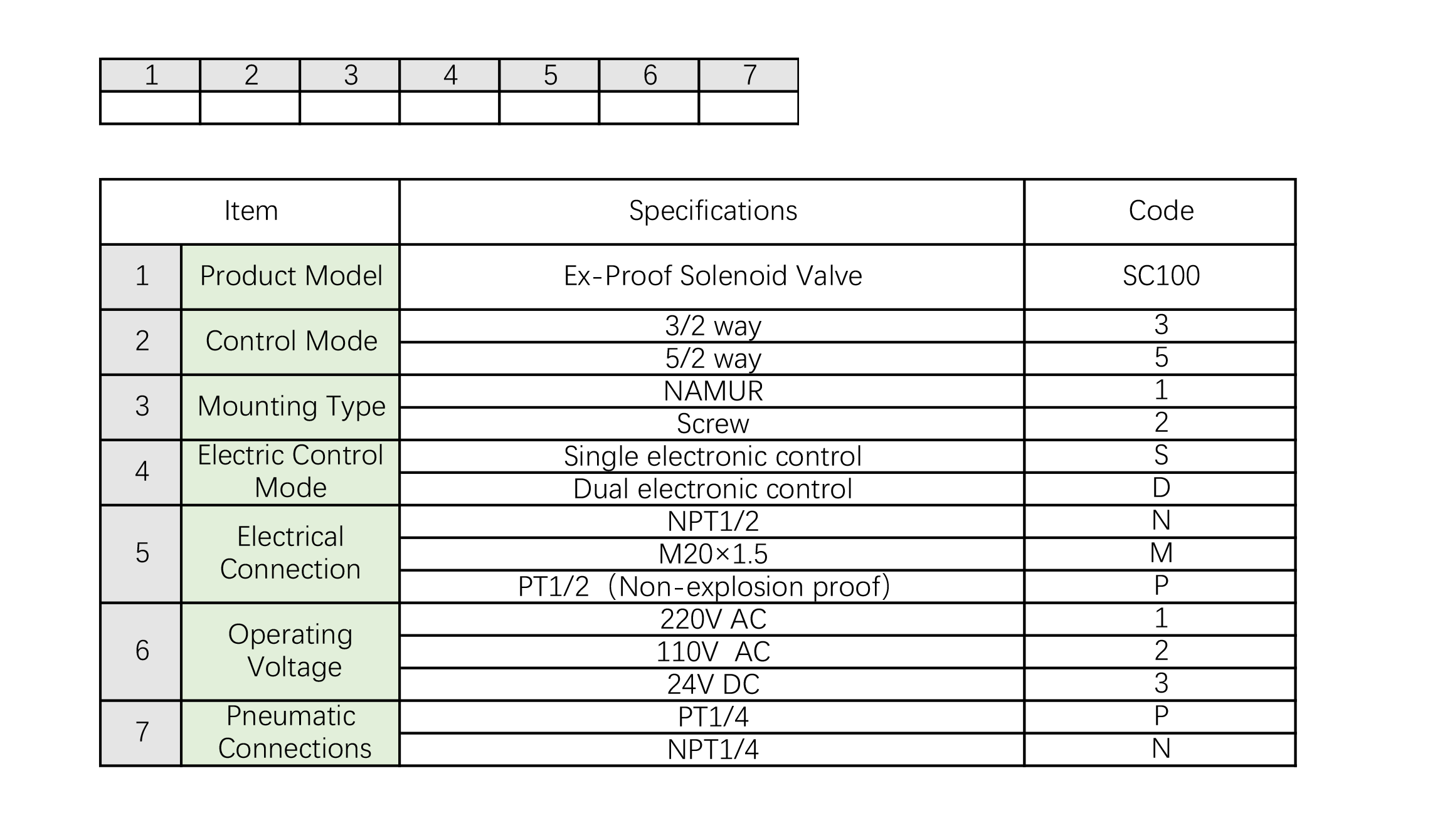

4.How to Order :
| SC100 | Mounting | Coil: | Operating Voltage | Connections (Pneumatic -Electrical) |
| 1:NAMUR | S:Single | 1:220V AC | P:PT1/4 | |
| 2:Screw | D:Dual | 2:110V AC | N:NPT1/4 | |
| 3:24V DC |
Eg:SC100 1 S 1 P: (Namur single coil, 22v AC,PT1/4)
