XR200
- 2022-11-14 17:03:32
Pneumatic transmitter, controllers and associated equipment can
only function efficiently when provided with an air supply which
is dust-,oil- and moisture-free. The supply air pressure has also
to be maintained within close limits, unaffected by changers
in the rate of consumption.
As the air is frequently taken from a source subject to fluctuations
in pressure, a supply air station provides the necessary
filtration and control to the desired pressure.
2. Construstion.

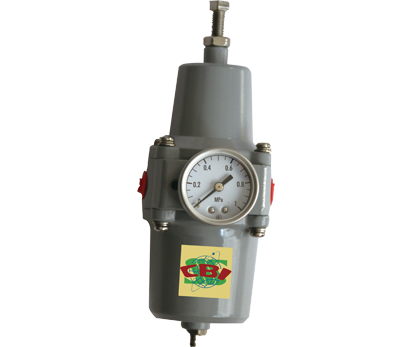

The supply air station is essentially composed of one air filter,
one pressure reducer and one pressure gauge.
The air filter can, however, be supplied as a separate unit,
as can also the pressure reducer with gauge.
3. Specification
|
Category |
XR200
|
||
|
A |
B |
C |
|
|
Max Supply Pressure |
10kgf/㎠ (150psi) |
||
|
Max Output Pressure |
2.5kgf/cm2 |
4kgfcm2 |
6kgf/cm2 |
|
Air Connection |
NPT(PT) 1/4 |
||
|
Gauge Connection |
NPT(PT) 1/4 |
||
|
Ambient Temperature |
-5~60℃(Standard), -20~120℃(High Temp.), -40~70℃(Low Temp.) |
||
|
Min Filtering Size |
10 micron |
||
|
Material |
Aluminum Housing/Stainless Steel 316 |
||
|
Weight |
0.5/1.8 kg |
||
