DC200、300、500
- 2022-11-14 16:53:16

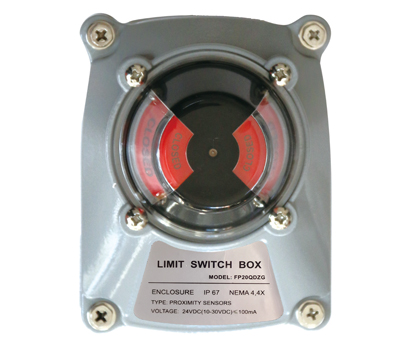

The DC200、300、500 series limit switch box with position indicator provides open to close switch signaling and continuous visible rotational degree monitoring of quarter turn valves. The rugged and compact design is best suited for small ball valve assemblies, or any place where space is limited.
FEATURES
1. Explosion proof ExdIICT6
2. Weather proof IP67(NEMA4,4X)
3. Compact and Beautiful Design S.S304 Materail
4. Bolts on Visual Position Indicator Secure waterproof
5. "Quick-Set" Cam Spring loaded splined cam
No need to adjust again after initial setting
Easy setting without tool
6. Multipoint terminal strip;Standard 8 points and enough strips for connection
7. Dual cable entries,2X3/4NPT (Standard), PT3/4,PF3/4(Option)
8. Captive cover bolts;No worry to loose bolts while cover opens
9. Easy mounting;NAMUR standard stainless steel shaf and bracket

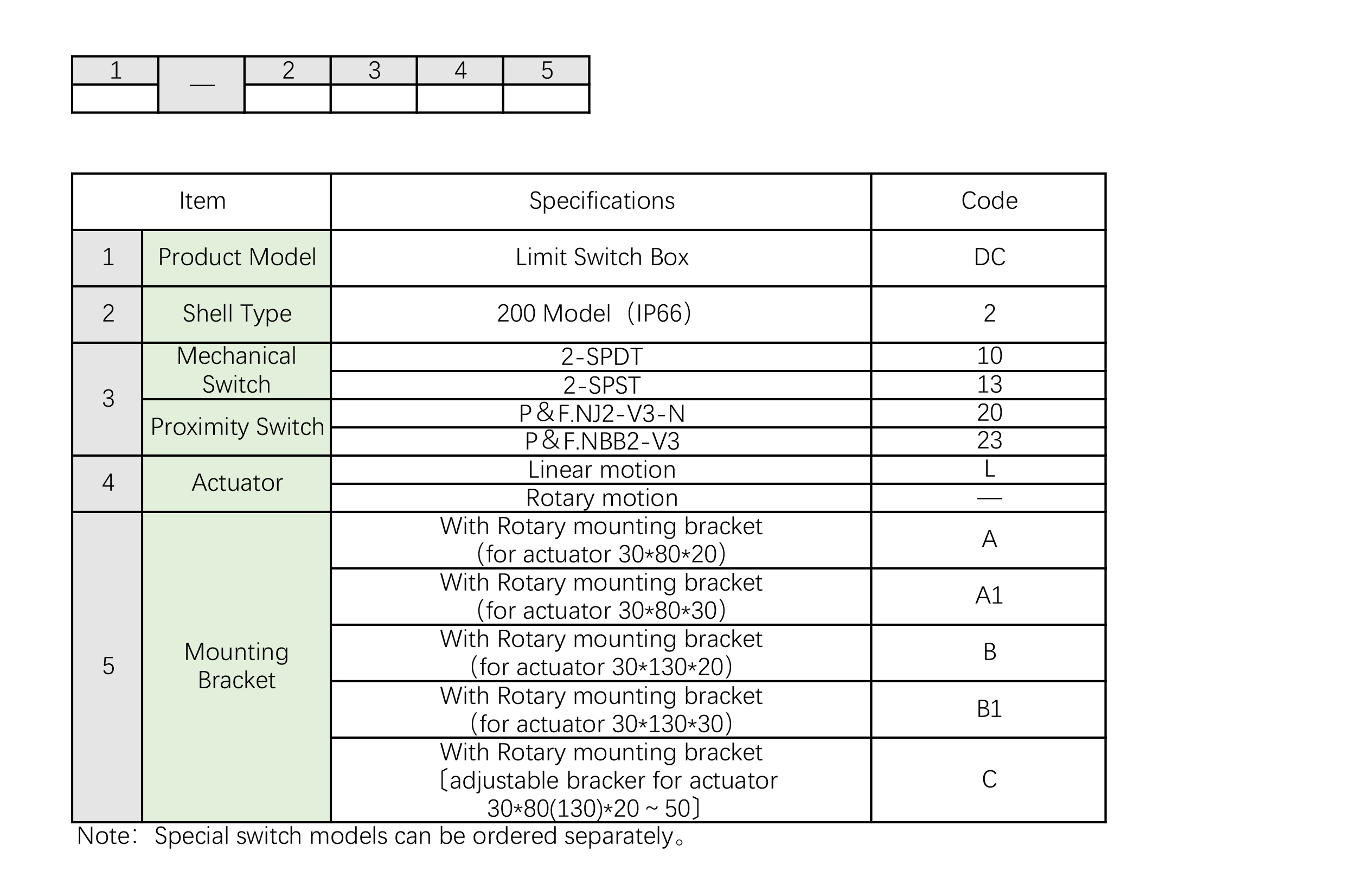

Order Symbols
DC-5 1 2
|
5 Shell Type |
Ex-proof（Ex dⅡ CT6）、Weather Prodtction（IP67） |
|
1 Switch Type |
Mechanical Type: 1 2-SPDT 2 3-SPDT 3 4-SPDT 4 2-SPST 5 2-DSDT 6 2-SPDT+Potoniometer 7 2-SPDT+PTM（4-20mA） Proximity Sensor Type： 8 P&F NJ2-V3-N |
|
2 Bracket |
1（30x80xH） 2 (30x130xH) |
SPECIFICATION
|
Model |
DC-500 |
||||
|
Standard |
Option |
||||
|
Shell Type |
Ex-proof Ex dⅡCT6 Weather ProtectionIP67 |
||||
|
Ambient Temp |
-25℃~ +85℃ |
||||
|
Conduit |
2-3/4NPT |
PT3/4 PF3/4 |
|||
|
Terminal Strips |
8 |
9~24 |
|||
|
Position Indicator |
0~90° |
0~180° |
|||
|
Open-Yellow Closed-Red |
|||||
|
Switch Rating |
Mechanical Type |
SPDT |
A C |
125/250V 15A |
|
|
DC |
25OV 15A |
||||
|
DPDT |
AC |
20A,125/250V;1HP,125V;2HP,250V |
|||
|
Proximity Sensor Type |
0~25VDC |
||||
|
Pontoniometer |
1KΩ, 5KΩ, 10KΩ |
||||
|
Feedback |
4~20mA(20~4mA) |
||||
|
Material |
Aluminum Die casting |
||||
|
Weight |
1 kg |
||||

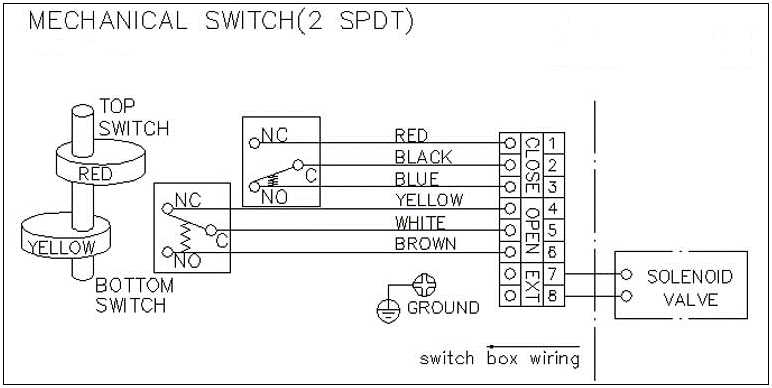

Wiring
